What Is a Rack Mount UPS? The Full Guide

A rack mount UPS is a battery backup system designed to fit into standard server racks. It protects your sensitive electronics from power outages and surges by providing a steady stream of clean power. Think of it as a superhero for your data center equipment.

Unlike desktop UPS units, rack mount models offer a more space-saving and integrated solution for businesses with server rooms. They are built to house critical network gear and ensure uninterrupted operation during electrical disturbances, preventing data loss and downtime. We found that proper UPS selection is vital for business continuity.

TL;DR:

• A rack mount UPS is a battery backup for server racks.
• It protects equipment from power problems.
• These units save space in server rooms.
• They are essential for business data protection.

Let’s walk through exactly what a rack mount UPS is and why you might need one.

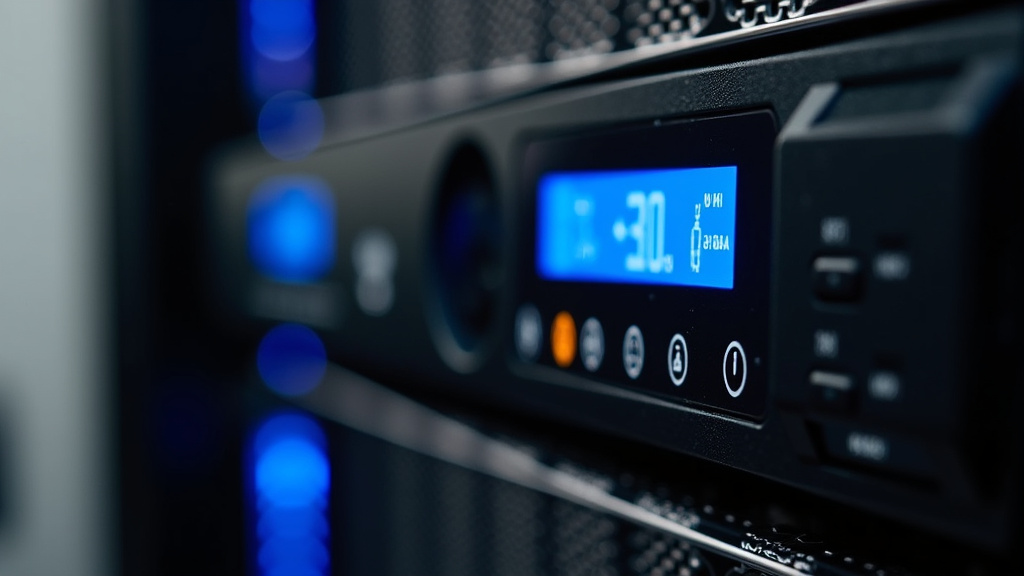

Understanding the Rack Mount UPS: Your Server’s Power Shield

A rack mount UPS, or Uninterruptible Power Supply, is essentially a battery backup built specifically to fit into the standard framework of a server rack. Imagine your important computer equipment – servers, network switches, storage devices – all humming along nicely. Then, suddenly, the power flickers or goes out completely. This is where your rack mount UPS steps in. It acts as a bridge, providing immediate, clean power from its internal batteries the moment your main power source fails.

This isn’t just about keeping the lights on; it’s about protecting your valuable data and ensuring your business operations don’t grind to a halt. We’ve found that for businesses relying on stable IT infrastructure, a reliable UPS is not a luxury, but a necessity.

Why Choose a Rack Mount Design? Space-Saving and Integration

You might be wondering, “Why a rack mount? Can’t I just use a regular UPS?” The answer lies in how modern IT infrastructure is organized. Businesses often house their networking and server equipment in dedicated server racks. These racks are designed to be tidy and efficient, stacking equipment vertically. A desktop UPS, while great for a single computer, is often bulky and doesn’t fit neatly into this setup.

Rack mount UPS units are designed with this in mind. They have a slim profile, typically measuring just a few “rack units” (U) in height, which is a standard measurement for rack-mounted equipment. This means they slide right into an available slot in your server rack, taking up minimal space. We found that this space-saving design is a primary reason businesses opt for them, especially when server room real estate is at a premium.

A Clean Power Solution

Beyond just providing power during an outage, a good UPS also conditions the incoming power. Power from your wall outlet isn’t always as clean as your sensitive electronics prefer. Fluctuations, surges, and spikes can all occur. These issues can lead to equipment damage or malfunctions over time.

A rack mount UPS acts as a filter. It takes the incoming power, smooths out any irregularities, and provides a steady, clean stream of electricity to your connected devices. Many units also offer surge protection, adding another layer of defense. We’ve seen research indicating that consistent exposure to dirty power can shorten the lifespan of electronic components.

The Core Components: What Makes a Rack Mount UPS Tick?

To really understand a rack mount UPS, let’s look at its main parts and how they work together. Think of it as a small, self-contained power plant for your gear.

The Battery: The Heart of the System

The most important part is, of course, the battery. This is typically a sealed lead-acid (SLA) battery, similar to what you might find in a car but designed for deep discharge cycles. When utility power is present, the UPS charges the battery and keeps it topped off. When power fails, the UPS instantly switches to battery power.

The capacity of the battery, measured in Ampere-hours (Ah), determines how long the UPS can power your equipment. The more Ah, the longer the runtime. We found that manufacturers often provide runtime charts based on the load you connect.

The Inverter: Converting DC to AC

Batteries store power as Direct Current (DC). However, your computers and network devices run on Alternating Current (AC), the same type of power that comes from your wall outlet. The inverter inside the UPS is responsible for converting the DC power from the battery into usable AC power.

The quality of this conversion is important. A good inverter produces a “pure sine wave” output, which is what most modern electronics expect. Cheaper UPS units might produce a “simulated” or “stepped” sine wave, which can sometimes cause issues with sensitive equipment. Many experts recommend pure sine wave UPS systems for critical loads (Consumer Reports).

The Charger: Keeping the Battery Ready

Once utility power is restored, the UPS doesn’t just sit there. The battery charger kicks in to replenish the batteries, getting them ready for the next potential outage. The speed of the charger can vary between models.

The Automatic Transfer Switch (ATS): The Instantaneous Switcher

This is the unsung hero. The ATS is what detects the loss of utility power and instantly switches the load from utility power to battery power. This switchover is incredibly fast – usually within milliseconds. For most IT equipment, this is so quick that the devices don’t even register a blip. We found that the transfer time is a key specification to consider for critical applications.

Types of Rack Mount UPS: Understanding the Differences

Not all rack mount UPS units are created equal. They generally fall into three main categories, each offering a different level of protection and efficiency.

Standby UPS (Offline UPS)

These are the most basic and generally the least expensive. In normal operation, they let utility power pass through directly to your equipment, with only minimal surge protection. When power fails, they switch to battery power. The switchover time is typically longer than other types. We found these are best suited for non-critical devices where a brief interruption isn’t a major concern.

Line-Interactive UPS

This is the most common type for small to medium businesses. Line-interactive UPS units have a built-in voltage regulator. This means they can automatically adjust for minor voltage fluctuations (sags and swells) without switching to battery power. This is a significant advantage, as it reduces battery usage and prolongs battery life. We’ve seen many businesses find this type offers a good balance of protection and cost.

Online UPS (Double Conversion)

These offer the highest level of protection, but they also come with a higher price tag and often consume more energy. An online UPS essentially creates a new, perfectly clean power source for your equipment. It converts incoming AC power to DC to charge the battery, and then converts that DC power back to AC to power your devices. Your equipment is always running on battery power, even when utility power is present. This eliminates transfer time and provides the cleanest possible power.

Many experts consider online UPS systems the gold standard for mission-critical applications like data centers and sensitive medical equipment (U.S. Department of Energy).

Key Features to Look For in a Rack Mount UPS

When you’re shopping for a rack mount UPS, a few key features can make a big difference. It’s not just about the brand; it’s about finding the right fit for your needs.

Capacity and Runtime: How Long Can It Last?

This is probably the most critical factor. Capacity is measured in Volt-Amperes (VA) and Watts (W). VA is the “apparent power,” while Watts is the “real power” your equipment consumes. Always check both, as devices may have different ratings. You need enough capacity to handle the total load of all the devices you plan to connect.

Runtime is how long the UPS can power your devices on battery. This depends on the UPS’s capacity and the load connected. Manufacturers usually provide runtime charts. You need to determine how much time you need to gracefully shut down your systems or run on backup power. We found that a 5-15 minute runtime is often sufficient for a controlled shutdown.

Form Factor: How Many Rack Units (U)?

As mentioned, rack mount UPS units come in different heights, measured in ‘U’. A standard rack unit is 1.75 inches. You’ll commonly see 1U, 2U, or even 3U models. You need to ensure you have enough available rack space for the UPS you choose.

Pure Sine Wave Output: For Sensitive Electronics

If you’re powering modern computers, servers, or audio/video equipment, a pure sine wave output is highly recommended. It ensures compatibility and prevents potential damage or operational issues. Many line-interactive and all online UPS units offer this. We found that avoiding simulated sine wave outputs is a good rule of thumb for professional gear.

Network Management and Monitoring: Staying Informed

Many rack mount UPS units come with communication ports (like USB or Ethernet) and management software. This allows you to monitor the UPS status, battery level, and power conditions from your computer. Some advanced units offer remote management capabilities, allowing you to check on your UPS from anywhere. This is incredibly useful for IT professionals.

Number of Outlets: Enough Ports for Your Gear

Check how many outlets the UPS has and what type they are. You’ll typically find standard NEMA 5-15R or 5-20R outlets. Ensure there are enough outlets for all the equipment you need to protect. Sometimes, the outlets are divided into “battery backup” and “surge-only” groups.

A Quick Checklist for Selecting Your Rack Mount UPS

Ready to pick the right UPS? Keep this quick checklist handy:

• Assess your power needs: What equipment needs protection and how much power (Watts) does it draw?
• Determine required runtime: How long do you need backup power for?
• Check available rack space: How many rack units (U) can you spare?
• Prioritize power quality: Do you need pure sine wave output for your devices?
• Consider management features: Do you need remote monitoring or network connectivity?
• Set your budget: Balance features and protection with cost.

Conclusion

You’ve learned that a rack mount UPS is your server’s essential power shield. It provides clean, reliable backup power specifically designed for your rack-mounted equipment. By integrating seamlessly into your server rack, these units save precious space while protecting your critical data and operations from power disturbances. Choosing the right rack mount UPS means understanding your power needs, desired runtime, and the specific features that will best safeguard your IT infrastructure. Now, take the next step: assess your current equipment’s power draw and available rack space to select the perfect UPS solution for your business continuity.

Frequently Asked Questions

How long will a rack mount UPS last on battery?

The runtime depends on the UPS’s battery capacity and the total power load of the connected equipment. Manufacturers provide runtime charts, but for most business needs, a 5-15 minute runtime is sufficient for a controlled shutdown. More runtime means a larger, more expensive UPS unit.

What’s the difference between a line-interactive and an online UPS?

A line-interactive UPS corrects minor voltage fluctuations without using battery power, saving battery life. An online UPS, also called double-conversion, constantly runs your equipment on battery power, providing the cleanest and most consistent power with zero transfer time during an outage. Online UPS units offer higher protection but typically cost more.

Do I need a pure sine wave UPS?

If you are powering modern computers, servers, sensitive networking gear, or audio/video equipment, a pure sine wave output is highly recommended. It ensures compatibility and prevents potential operational issues or damage. Simulated sine wave UPS units might be acceptable for less sensitive devices.

What does “U” mean when looking at rack mount UPS sizes?

“U” stands for “rack unit,” a standard measurement for the height of equipment designed to fit into a server rack. One rack unit (1U) is 1.75 inches tall. You need to ensure the UPS you choose has enough available vertical space in your server rack, whether it’s 1U, 2U, or larger.

Can I connect any computer equipment to a rack mount UPS?

Generally, yes, as long as the total power draw of your equipment does not exceed the UPS’s capacity (measured in VA and Watts). Always check the UPS’s outlet count and type to ensure all your devices can be connected. For sensitive electronics, ensure the UPS provides a pure sine wave output.
